TD-16000/110-U1(UHL1) type power transformer, two-winding, energy-efficient, with reduced losses

product
Power transformer, three-phase, two-winding, with natural oil circulation and forced air circulation. Designed for operation in electrical power systems. The TD-type transformer ensures reliable power supply throughout its service life.
Get the cost
Application sent

By clicking the “Calculate” button, you consent to the processing of personal data.

Description

Power transformer, three-phase, two-winding, with natural oil circulation and forced air circulation. Designed for operation in electrical power systems. The TD-type transformer ensures reliable power supply throughout its service life.

Power range

Rated power : 16000 kVA.
HV winding rated voltage: 121 kV.
Climatic category: U1 / UHL1.


Transformer symbols

Т – Three-phase transformer.
D – Natural oil circulation and forced air circulation
16000 – Rated power, kVA.
110 – Voltage class, kV.
U1 / UHL1 – Climatic category and installation type in accordance with  GOST 15150


Characteristic

Technical characteristicsfor TD-type transformer, rated 16000 kVA, standard losses
Rated power, kVA
Rated voltage, kV
Winding connection diagram
and vector group
Losses, W
 Short-circuit voltage, %
No-load current, %
No-load
Short-circuit
16000
121
Yn/D-11
14000
8500
10,5
0,6

Overall and Mounting Dimensions

Transformer overall dimensions
Rated power, kVA
Length, (L) mm
Width, (B) mm
Height, (H) mm
Distance between channel centerlines
Oil weight, kg
Total weight, kg
Transverse axis (A), mm
Longitudinal axis (A1), mm
16000
5780
3234
5385
2000
1524
11200
38100

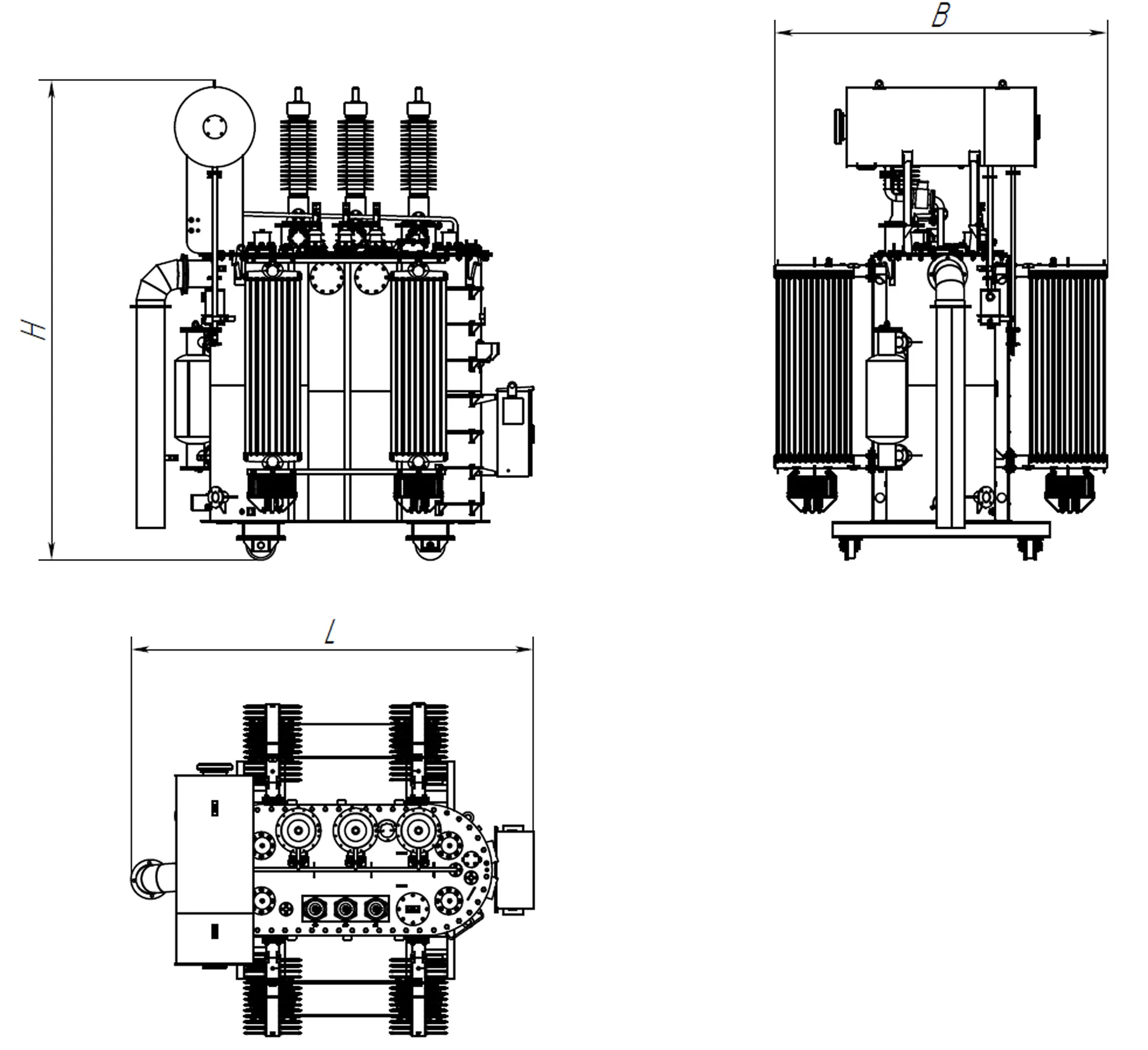

Dimensional drawings
